Aluminium Sliding Patio Doors
Available in a range of opening configurations to suit any application
Origin Aluminium Sliding Patio Doors
Delivering first-in-class design, our sliding door range provides the most spectacular finish any building project. Available in four different sightlines across two different sliding door systems – the Origin Artisan Slider and the Origin Patio Slider – we have some of the slimmest sliding doors on the market, allowing for some of the largest glass expanses to be achieved to offer maximum, uninterrupted views whilst not compromising on quality or thermal performance. Both systems are modern, architecturally striking variations on the traditional patio door system.
Artisan Slider OS-20
Minimal and sleek in design, the Artisan Slider OS-20 has ultra-slim sightlines of just 20mm and, being made from premium grade aluminium, it’s a combination that means less frame and more natural light, and makes for a truly breath-taking spectacle.
Patio Slider OS-29, OS-44 and OS-77
A modern take on the traditional patio door, the Origin Patio Slider OS-29, OS-44 and OS-77 are the perfect fit for any type of home. Made completely bespoke, there are three sightline options available. The OS-29 is the smaller of the three, with sightlines of just 29mm, maximising glass and the level of natural light which can flood in. With sightlines of 44mm and 77mm, the Patio Slider still possesses some of the slimmest sightlines whilst providing a more traditional style of patio system, with an injection of effortless elegance.
Open up your world with a glide…
Effortlessly open up your home as your door glides along the specially designed track, which allows the doors to pass each other smoothly – today, tomorrow, and even after years of use.
Double and triple tracks are available, and these will be determined by your chosen configuration. The beauty of a slider is that you choose where your opening is, whether that’s to the left, right, or the middle of your space.

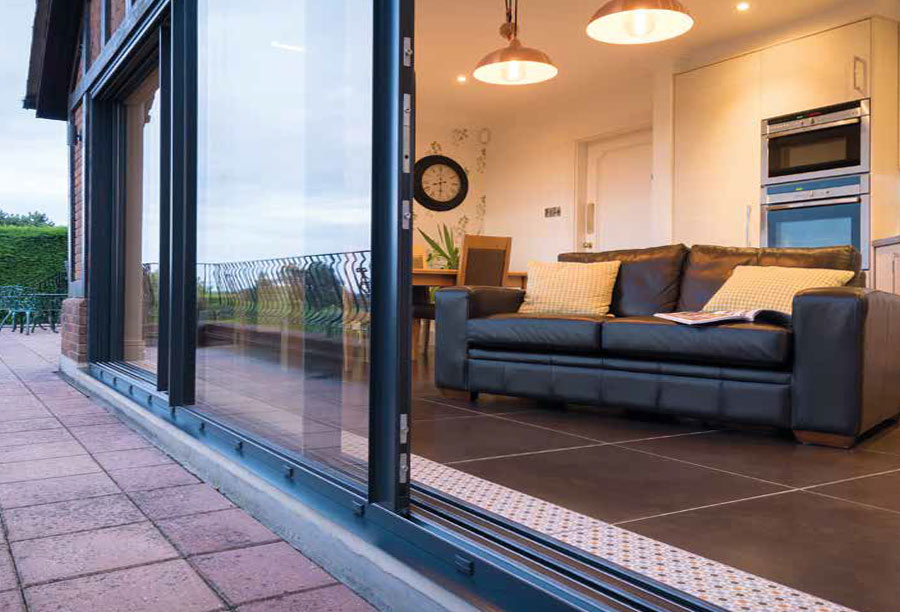

Each track is concealed – this means there’s less chance of anyone catching their fingers or toes as they explore your inside and outside worlds. It’s also possible to take the integrated look even further by recessing the track into the floor, for an ultra-sleek flush finish.
In terms of operation, weighted bearings also stop the doors from moving once they’re in place, for an extra level of safety, and the doors also feature a stop function which stops the lead door from overrunning in its track.
Made your way
Completely bespoke and tailored to your requirements, you can customise your door down to every last detail. Working with us and your chosen Origin Partner, we’ll guide you through the personalisation process.
Key features and benefits:
- Made in Britain
- Up to a 20-Year Guarantee
- Police Backed Security
- 150 RAL colours
- Unbeatable lead times
- Bespoke to you
- Low Maintenance
A sense of security

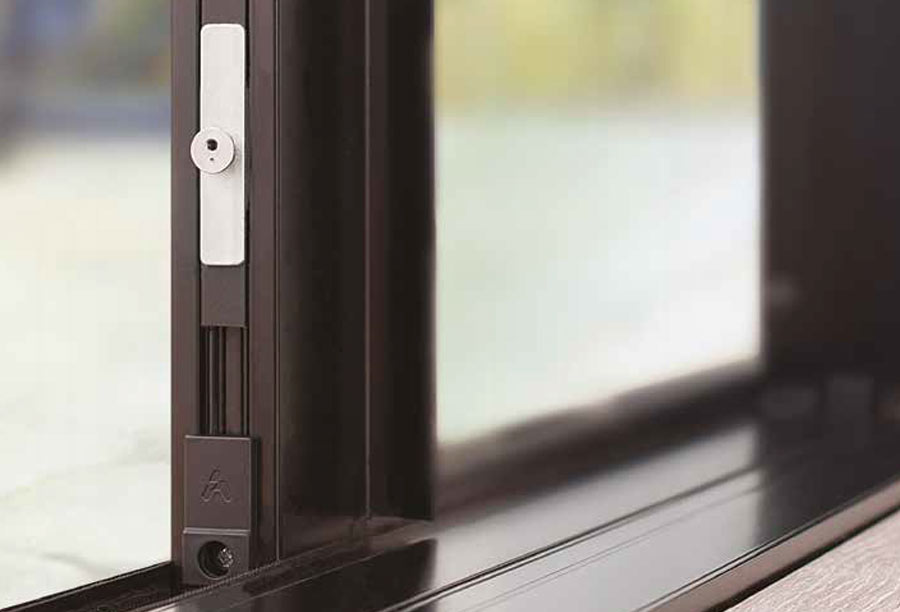

An incredibly secure system offering a minimum of six points of locking to either the jamb or adjacent door, there’s only a handle on the inside of the OS-20 Artisan Slider, so there’s no lock on the outside for would-be intruders to pick.
The aluminium frame and e-toughened glass – which is tough to break as well as thermally efficient – makes it easier to open up your world, your way, with complete peace of mind.
Call our team on 01903 504466 now!
Download brochure
Comparing the Artisan and Patio Sliding Doors…
The key differences between the Artisan Slider OS-20 and the Patio Slider OS-29 / OS-44 / OS-77
| OS-20 | OS-29 | OS-44 | OS-77 | |
|---|---|---|---|---|
| Interlocker SightlineSizes denote glass to glass measurements | 20mm |
29mm |
44mm |
77mm |
| Sizes - Height(overall size) | Min. 1,600mm Max. 3,000mm |
Min. 1,480mm Max. 2,600mm |
Min. 1,940mm Max. 2,600mm |
Min. 1,940mm Max. 2,600mm |
| Sizes - Width(overall size) | Min. 1,228mm Max. 13,196mm |
Min. 1,463mm Max. 11,929mm |
Min. 1,463mm Max. 11,803mm |
Min. 1,462mm Max. 11,803mm |
| Popular Colours | 7016M |
7015M, 7016M, 7021M, 9005M, 9007M, 9910G, 9910M |
7015M, 7016M, 7021M, 9005M, 9007M, 9910G, 9910M |
7015M, 7016M, 7021M, 9005M, 9007M, 9910G, 9910M |
| Glazing Options | Wet glazing (glass units are bonded to the frame using structural sealant) |
Semi-dry glazing (glass units are bonded to the frame on site) |
Dry glazing (glass units are fixed to the frame using gaskets) |
Dry glazing (glass units are fixed to the frame using gaskets) |
| U-Value | 1.4W/m2K |
Up to 1.3W/m2K |
Up to 1.3W/m2K |
Up to 1.3W/m2K |
| Guarantee | Standard - Up to 10 years frames and hardware, 5 years on glass |
Standard - Up to 20-yearsMarine Environment – 10‑years (frame) & 5‑years (hardware) |
Standard - Up to 20-yearsMarine Environment – 10‑years (frame) & 5‑years (hardware) |
Standard - Up to 20‑yearsMarine Environment – 10‑years (frame) & 5‑years (hardware) |
A size to suit your needs…

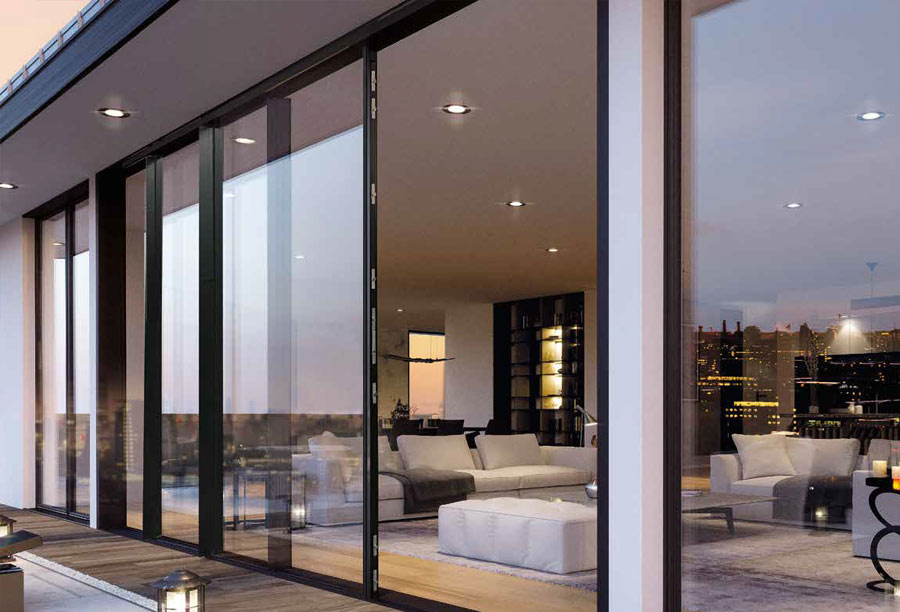

Each individual panel can be up 2.2m wide and 3m tall (or 6m2 overall) with a maximum overall width of over 13m – the OS-20 is minimalistic and yet has the potential to give your home an entire wall of glass.
Colours to Suit Your Lifestyle
Origin doors and windows are completely bespoke, and a big part of this is the colour of the frames, so we’re pleased to be able to offer over 150 different RAL colours for you to choose from.
Whether it’s black, white, metallic, a pastel shade or any colour of the rainbow you’re after, we guarantee to have a colour that will offer inspiration and work for you.
The choice is yours – do you want to make it blend in with your brickwork, render or cladding, replace like for like, or go a little more bold with it? Your options are endless, and one of the great benefits of this extensive colour range is that you can make such a personal expression and that there will be an option to suit any property type.
Hardware & Furniture

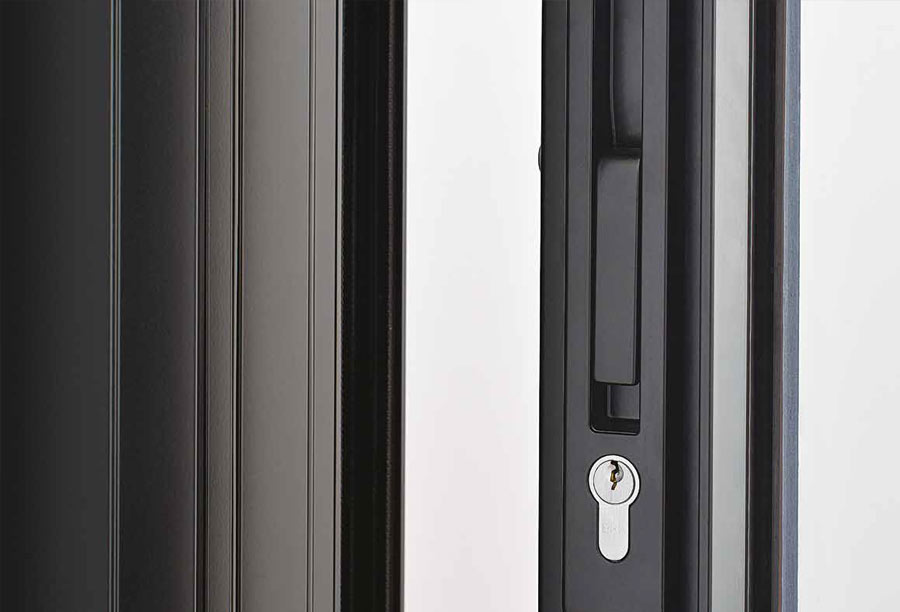

Offering an elegant and seamless finish, every Origin Artisan Slider is fitted with a streamlined handle. Available in five attractive colours, its architecturally striking and aesthetically pleasing design blends effortlessly into the frame while remaining hard-wearing and practical.
9910G
Hipca White
7015M
Slate Grey
7016M
Anthracite Grey
9005M
Jet Black
Light Silver
